Product Name: KS102 Aluminum Portable Stage


Stage Size:1.22x1.2.44M/4x8ft

Topping Material : Laminated plywood

Frame Material : Aluminum 6061-T6

Max. load: 800kg/sqm

Stage Height : 0.4-0.8M,

                        0.6-1.0M,

                        0.8-1.2M

                        1.0-1.5M,

                        1.2-2M...


Description

Product Specification


Features of KENZO stage components:

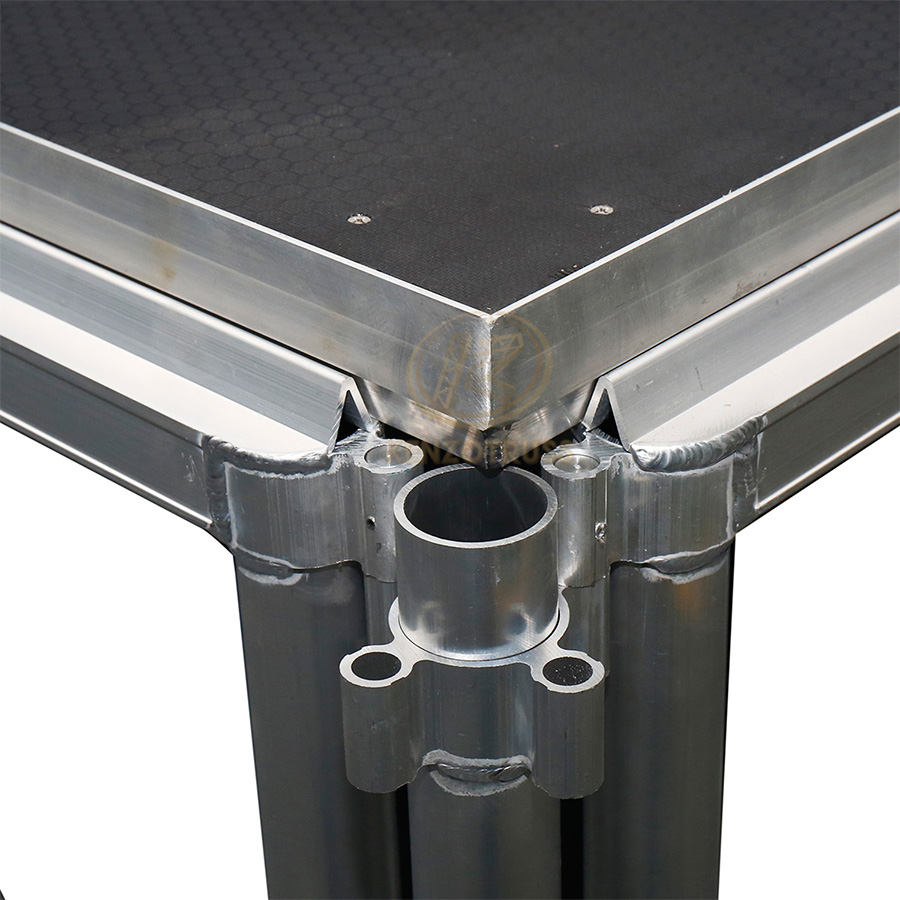

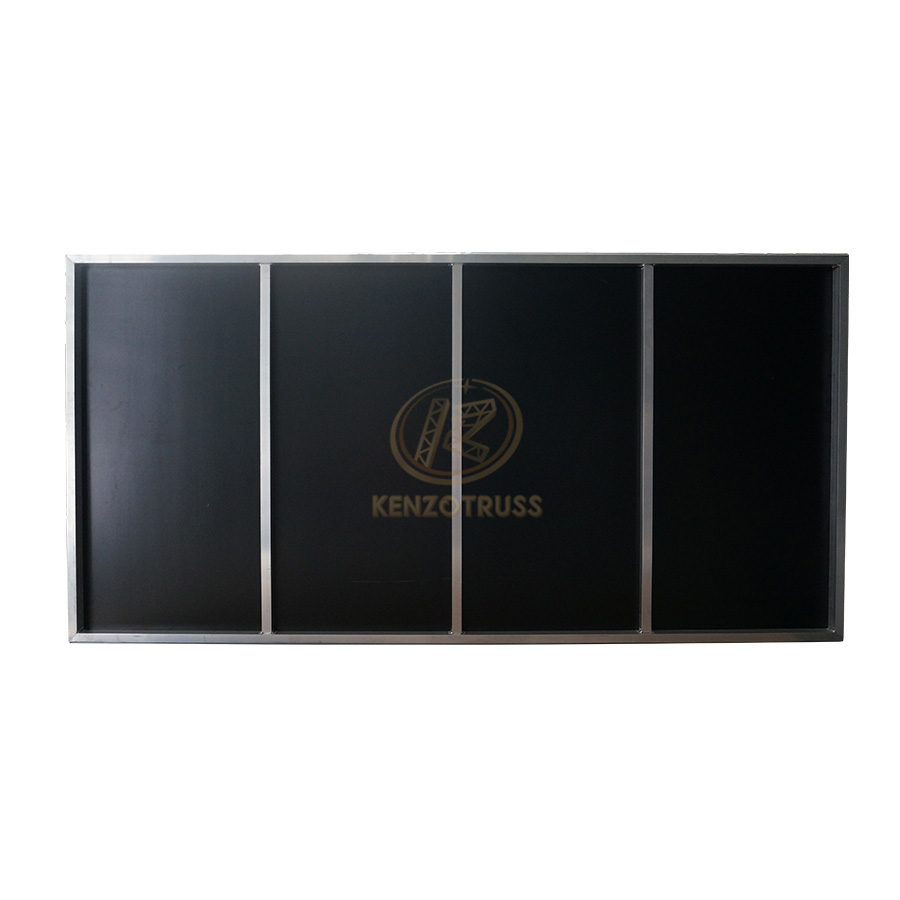

Platforms:
• Light weight, portable, and compact for easy setup, transport and storage.
• An aluminum lattice structure construction with a weight capacity of up to 800KGS/sq. meter.




Legs:
• Lightweight legs can be adjusted at 24, 32, 40 or 48 inches (60, 80 100 and 120cm) using interchangeable leg extension tubes.
• Legs are shared between adjacent platforms.

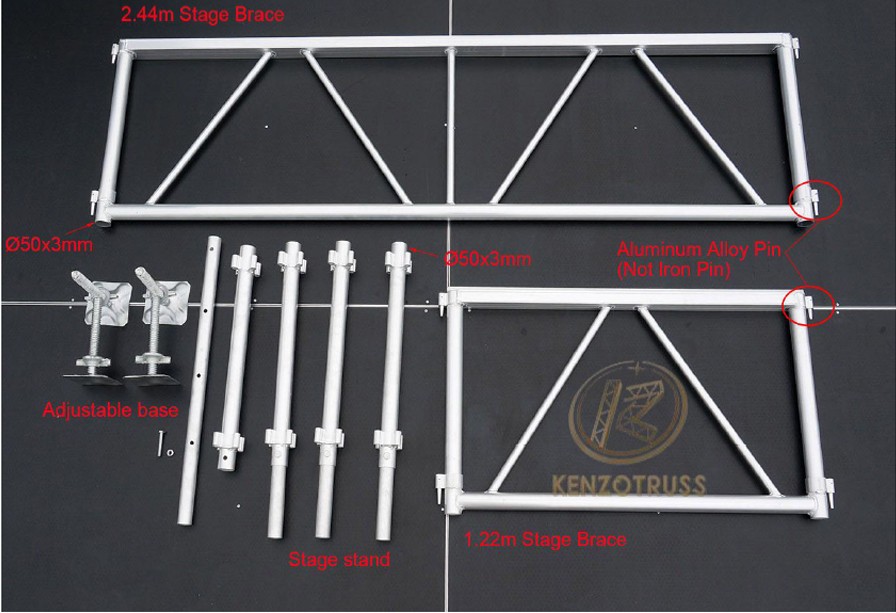

Side Braces:
• Lightweight and strong tubular aluminum construction.

• Side braces are shared between adjacent platforms.

• Stage braces using aluminum pins rather than iron one, will be never get rust.


photobank (25).jpg

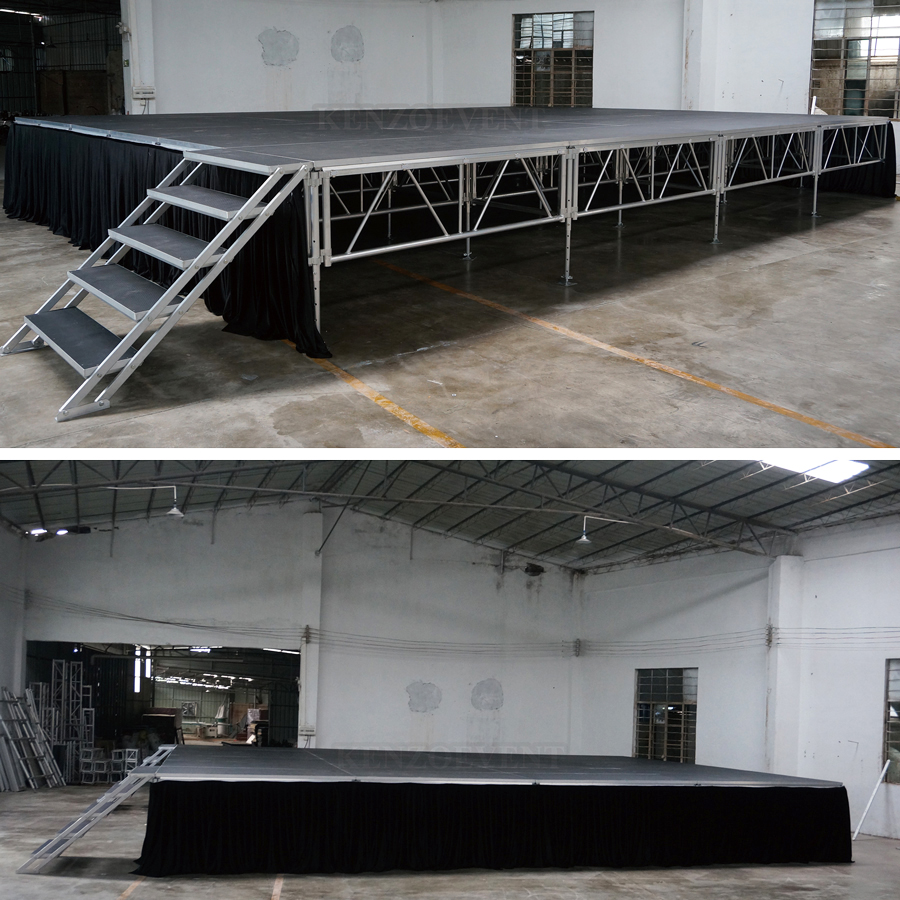

Real Case


photobank (36).jpg
