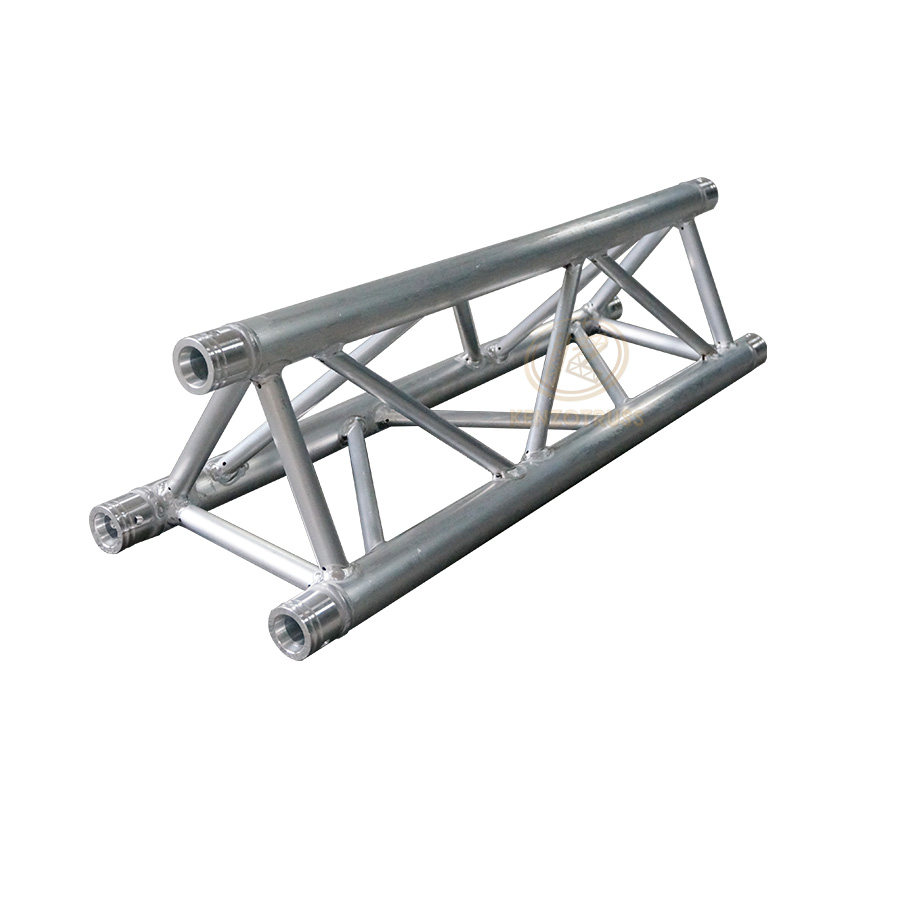

Product Name: KCT29 Aluminum Spigot Truss

Truss Dimension    290*290mm

Main Tube              50*3mm

Vice Tube               25*2mm

Brace Tube             20*2mm


Description

Product Specification

KENZO spigot truss is one of the label of our aluminum truss. With the feature of easy installation, it is very popular all over the world. The material of KENZO spigot truss is SGS certificated aluminum alloy 6082-T6. Also, KENZO spigot truss itself has been tested by TUV Rheinland.


The many applications of KENZO spigot truss product range include exhibition booths, concert stages, trade show exhibit booths, display booths, exhibit display booth, trade show display, DJ shows, Dj trussing booth, rolex replica watches truss roofs, portable displays and many others.


  • Material                    Quality aluminum alloy 6082-T6 (spigot truss)

  • Truss Connection     Spigot

  • Length Optioanl       0.5m, 1m, 1.5m, 2m, 2.5m, 3m

  • Color                        Silvery white (colorful powder coated is available)

  • Usage                      Used for concert, events, performance, hang audio, speaker, lighting, led screen, etc.

  • Package                   Air bubble film and woven bag, or carton

  • Delivery Time          Usually 5-7 working days

  • Transport Type         By Sea, By Air, By Express


ladder truss.jpg


Load Capacity

Span (m)
Center Load (kg)
Observed Deflection (cm)
Distributed Load (kg)
Observed Deflection (cm)
2
40011000
1
4
3565856
7
6
31212701
15
8
24420550
25
10
17030450
40
