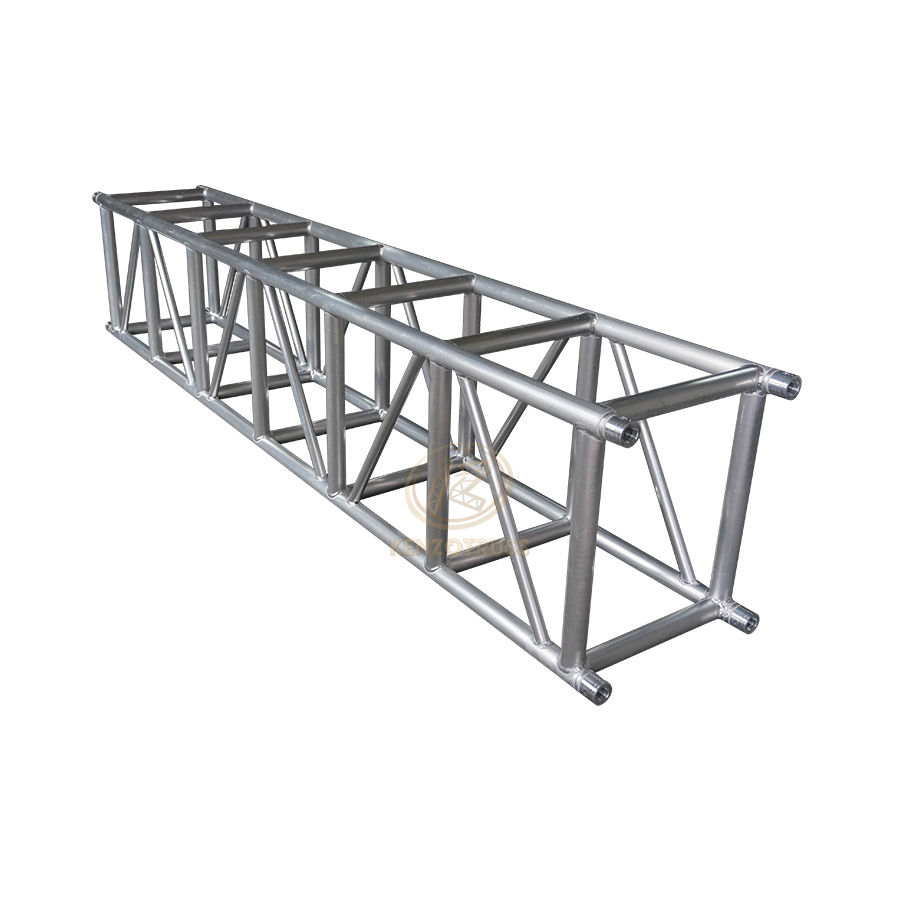

Product Name: KCS5060 Aluminum Spigot Truss

Truss Dimension    500*600mm

Main Tube              50*3mm

Vice Tube               50*2mm & 50*3mm

Brace Tube             30*2mm

Description

Product Specification

KENZO spigot truss is one of the label of our aluminum truss. With the feature of easy installation, it is very popular all over the world. The material of KENZO spigot truss is SGS certificated aluminum alloy 6082-T6. Also, KENZO spigot truss itself has been tested by TUV Rheinland.

The many applications of KENZO spigot truss product range include exhibition booths, concert stages, rolex replica watches trade show exhibit booths, display booths, exhibit display booth, trade show display, DJ shows, Dj trussing booth, truss roofs, portable displays and many others.


  • Material                    Quality aluminum alloy 6082-T6 (spigot truss)

  • Truss Connection     Spigot

  • Length Optioanl       0.5m, 1m, 1.5m, 2m, 2.5m, 3m

  • Color                        Silvery white (colorful powder coated is available)

  • Usage                       Used for concert, events, performance, hang audio, speaker, lighting, led screen, etc.

  • Package                   Air bubble film and woven bag, or carton

  • Delivery Time           Usually 5-7 working days

  • Transport Type         By Sea, By Air, By Express




Load Capacity

Span (m)
Center Load (kg)
Observed Deflection (cm)
Distributed Load (kg)
Observed Deflection (cm)
2
1700
4
3000
3
4
1589
11
2604
11
6
1480
23
2276
28
8
1214
36
1782
46
10
1083
50
1644
65
12
881
66
1340
85
14
755
83
1098
106
16
598
101
960
128
18
500
121
800
150
