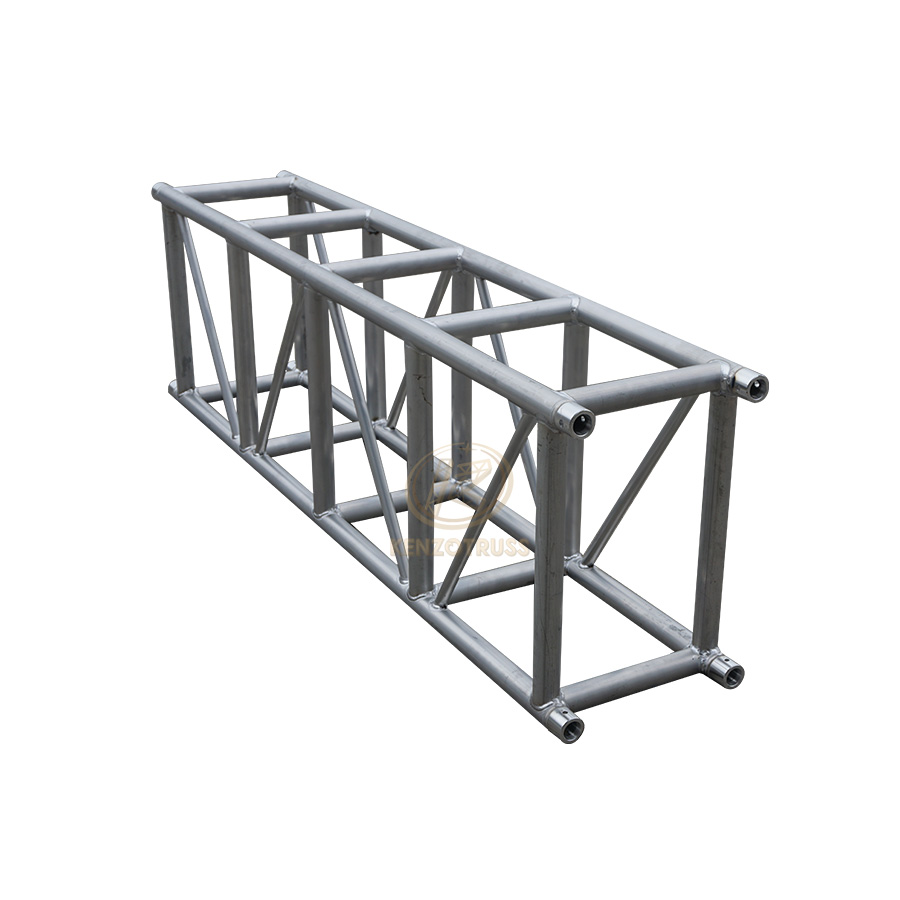

Product Name: KCS4060 Aluminum Spigot Truss

Truss Dimension    400*600mm

Main Tube              50*3mm

Vice Tube               50*2mm & 50*3mm

Brace Tube             30*2mm

Description

Product Specification

KENZO spigot truss is one of the label of our aluminum truss. With the feature of easy installation, it is very popular all over the world. The material of KENZO spigot truss is SGS certificated aluminum alloy 6082-T6. Also, KENZO spigot truss itself has been tested by TUV Rheinland.


The many applications of KENZO spigot truss product range include exhibition booths, concert stages, trade show exhibit booths, display booths, exhibit display booth, rolex replica watches trade show display, DJ shows, Dj trussing booth, truss roofs, portable displays and many others.


  • Material                    Quality aluminum alloy 6082-T6 (spigot truss)

  • Truss Connection     Spigot

  • Length Optional       0.5m, 1m, 1.5m, 2m, 2.5m, 3m

  • Color                        Silvery white (colorful powder coated is available)

  • Usage                       Used for concert, events, performance, hang audio, speaker, lighting, led screen, etc.

  • Package                   Air bubble film and woven bag, or carton

  • Delivery Time           Usually 5-7 working days

  • Transport Type         By Sea, By Air, By Express




Load Capacity

Span (m)
Center Load (kg)
Observed Deflection (cm)
Distributed Load (kg)
Observed Deflection (cm)
2
1600
4
2900
3
4
1488
9
2524
10
6
1380
22
2216
24
8
1114
31
1732
36
10
980
43
1604
49
12
780
55
1300
63
14
680
67
1069
78
16
570
79
930
94
18
500
91
800
112
