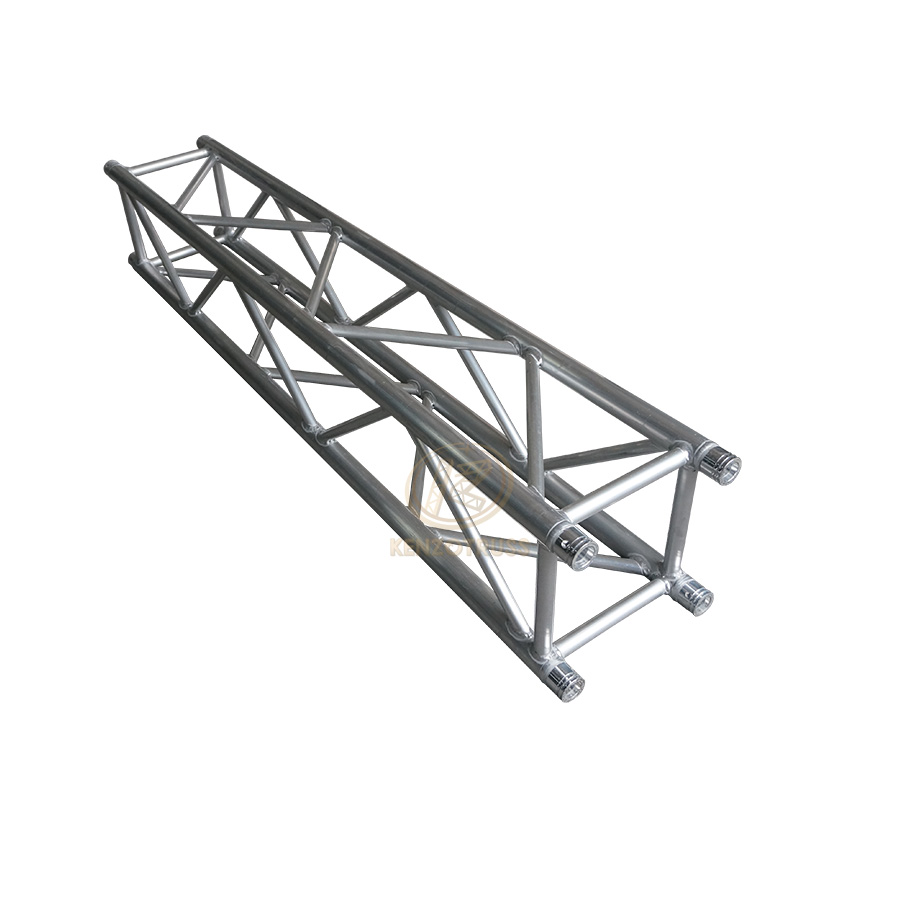

Product Name: KCS35 Aluminum Spigot Truss

Truss Dimension    350*350mm

Main Tube              50*3mm

Vice Tube               30*2mm

Brace Tube             25*2mm

Description

Product Specification

KENZO spigot truss is one of the label of our aluminum truss. With the feature of easy installation, it is very popular all over the world. The material of KENZO spigot truss is SGS certificated aluminum alloy 6082-T6. Also, KENZO spigot truss itself has been tested by TUV Rheinland.


The many applications of KENZO spigot truss product range include exhibition booths, concert stages, trade show exhibit booths, display booths, exhibit display booth, rolex replica watches trade show display, DJ shows, Dj trussing booth, truss roofs, portable displays and many others.


  • Material                    Quality aluminum alloy 6082-T6 (spigot truss)

  • Truss Connection     Spigot

  • Length Optional       0.5m, 1m, 1.5m, 2m, 2.5m, 3m

  • Color                        Silvery white (colorful powder coated is available)

  • Usage                      Used for concert, events, performance, hang audio, speaker, lighting, led screen, etc.

  • Package                   Air bubble film and woven bag, or carton

  • Delivery Time          Usually 5-7 working days

  • Transport Type         By Sea, By Air, By Express



Load Capacity

Span (m)
Center Load (kg)
Observed Deflection (cm)
Distributed Load (kg)
Observed Deflection (cm)
2
680
2
1900
1
4
610
11
1660
8
6
556
20
1435
17
8
507
28
1144
26
10
446
40
1010
37
12
396
50
703
47
14
360
65
550
60
