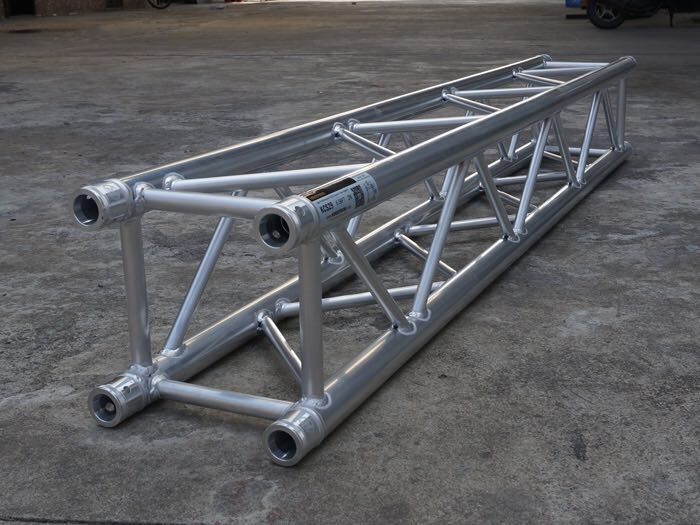

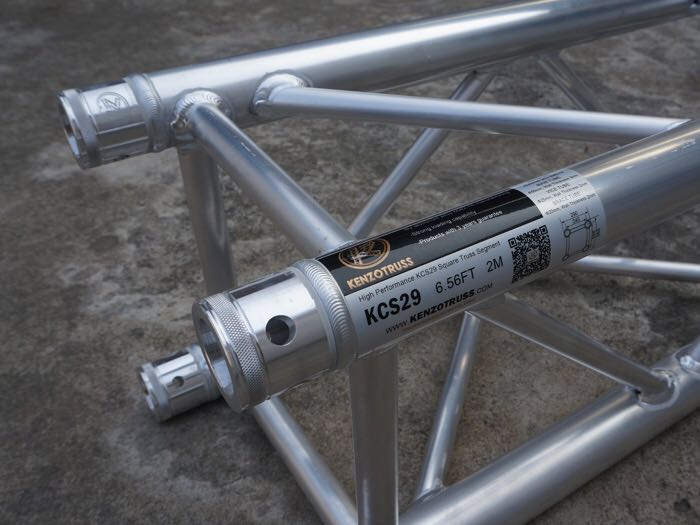

Product Name: KCS29 Aluminum Spigot Truss

Truss Dimension    290*290mm

Main Tube              50*3mm

Vice Tube               25*2mm

Brace Tube             20*2mm


Description

Product Specification

KENZO spigot truss is one of the label of our aluminum truss. With the feature of easy installation, it is very popular all over the world. The material of KENZO spigot truss is SGS certificated aluminum alloy 6082-T6. Also, KENZO spigot truss itself has been tested by TUV Rheinland.


The many applications of KENZO spigot truss product range include exhibition booths, concert stages, trade show exhibit booths, display booths, exhibit display booth, trade show display, DJ shows, Dj trussing booth, truss roofs, rolex replica watches portable displays and many others.


  • Material                   Quality aluminum alloy 6082-T6 (spigot truss)

  • Truss Connection    Spigot

  • Length Optional      0.5m, 1m, 1.5m, 2m, 2.5m, 3m

  • Color                       Silvery white (colorful powder coated is available)

  • Usage                      Used for concert, events, performance, hang audio, speaker, lighting, led screen, etc.

  • Package                   Air bubble film and woven bag, or carton

  • Delivery Time          Usually 5-7 working days

  • Transport Type        By Sea, By Air, By Express


aluminum truss (7).JPG

aluminum truss (6).JPG

Load Capacity

Span (m)
Center Load (kg)
Observed Deflection (cm)
Distributed Load (kg)
Observed Deflection (cm)
2
520
1
1600
2
4
429
6
1432
9
6
392
17
1230
20
8
359
29
978
32
10
333
43
788
45
12
310
56
500
55
