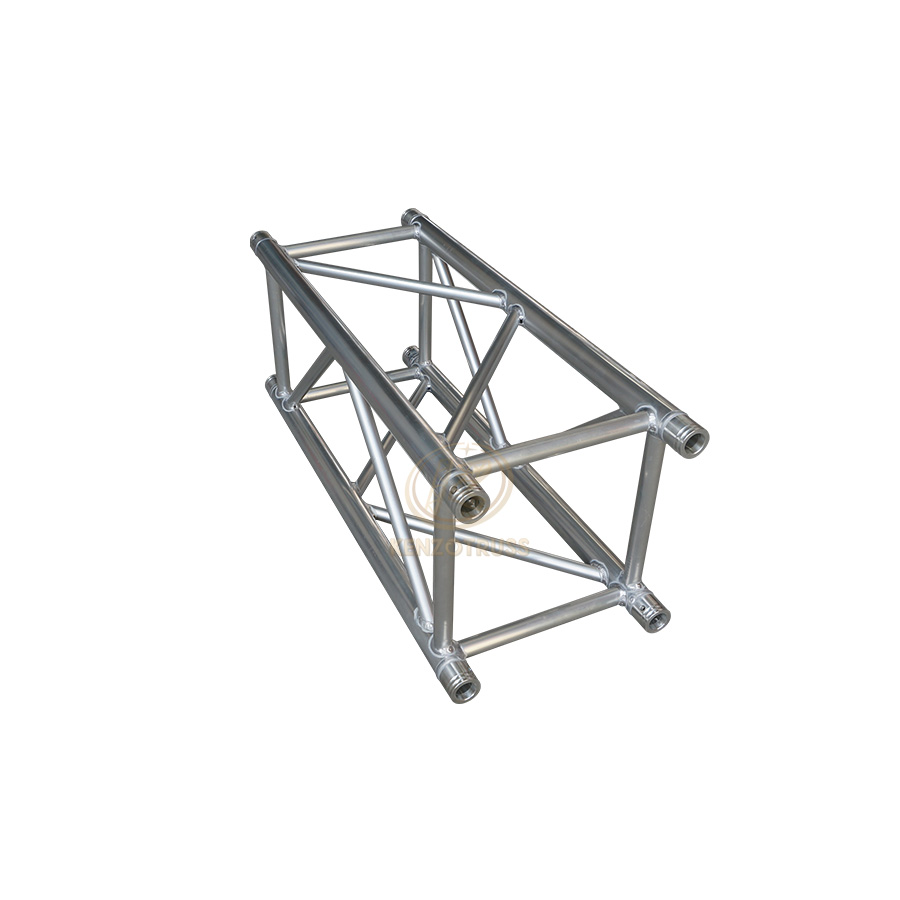

Product Name: KCS40 Aluminum Spigot Truss

Truss Dimension    400*400mm

Main Tube              50*3mm

Vice Tube               30*2mm

Brace Tube             25*2mm

Description

Product Specification

KENZO spigot truss is one of the label of our aluminum truss. With the feature of easy installation, it is very popular all over the world. The material of KENZO spigot truss is SGS certificated aluminum alloy 6082-T6. Also, KENZO spigot truss itself has been tested by TUV Rheinland.

The many applications of KENZO spigot truss product range include exhibition booths, concert rolex replica stages, trade show exhibit booths, display booths, exhibit display booth, rolex replica watches trade show display, DJ shows, Dj trussing booth, truss roofs, portable displays and many others.


  • Material                    Quality aluminum alloy 6082-T6 (spigot truss)

  • Truss Connection     Spigot

  • Length Optional       0.5m, 1m, 1.5m, 2m, 2.5m, 3m

  • Color                        Silvery white (colorful powder coated is available)

  • Usage                      Used for concert, events, performance, hang audio, speaker, lighting, led screen, etc.

  • Package                   Air bubble film and woven bag, or carton

  • Delivery Time          Usually 5-7 working days

  • Transport Type        By Sea, By Air, By Express



Load Capacity

Span (m)
Center Load (kg)
Observed Deflection (cm)
Distributed Load (kg)
Observed Deflection (cm)
2
850
1
2100
1
4
790
8
1880
7
6
720
12
1640
15
8
655
22
1310
23
10
560
33
1233
31
12
482
43
905
40
14
450
59
733
50
16
414
77
600
70
