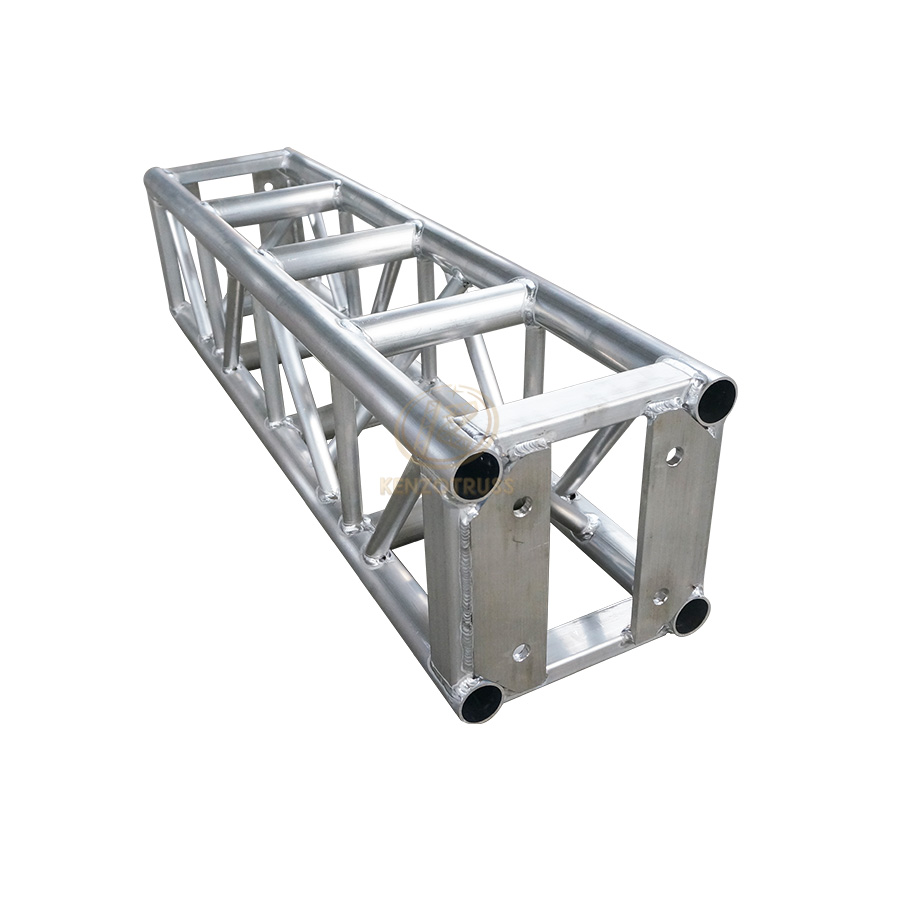

Product Name: KBS305 Aluminum Bolt Truss

Truss Dimension    305*305mm

Main Tube             50*3mm

Vice Tube              50*2mm

Brace Tube           25*2mm


Description

Product Specification

KENZO Bolt Truss family of riangular and square truss have many uses-both illuminated and non illuminated; for example, trade show exhibits, rolex replica watches retail displays, TV and movie sets, indoor/outdoor concerts, nightclubs and bars.


  • Material                    Quality aluminum alloy 6061-T6 (bolt truss)

  • Truss Connection     Screw

  • Length Optional       0.5m, 1m, 1.5m, 2m, 2.5m, 3m

  • Color                        Silvery white (colorful powder coated is available)

  • Usage                       Used for concert, events, performance, hang audio, speaker, lighting, led screen, etc.

  • Package                   Air bubble film and woven bag, or carton

  • Delivery Time           Usually 5-7 working days

  • Transport Type         By Sea, By Air, By Express




Load Capacity

Span (m)
Center Load (kg)
Observed Deflection (cm)
Distributed Load (kg)
Observed Deflection (cm)
2
570
11650
2
4
480614829
6
445
171280
20
8
41529103832
10
375
43825
45
12
3405360050
